Huawei Optical Transceiver OSX010000 SFP+ 10G Single Mode Module 1310nm 10km LC

Product Categories

LonRise Equipment Co. Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Huawei Optical Transceiver OSX010000 SFP 10G Single Mode Module 1310nm 10km LC
Brand: Huawei
Price: 1 USD

Brand Name : Huawei

Model Number : OSX010000

Certification : CE

Place of Origin : China

Model : OSX010000

Detail : Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)

Name : Huawei Optical Transceiver OSX010000

Keywords : sfp for switches 10g lr sfp

Transceiver form factor : SFP+

Transmission speed : 10 Gbit/s

Center wavelength (nm) : 1310

Standard compliance : 10Gbase-LR

Contact Now

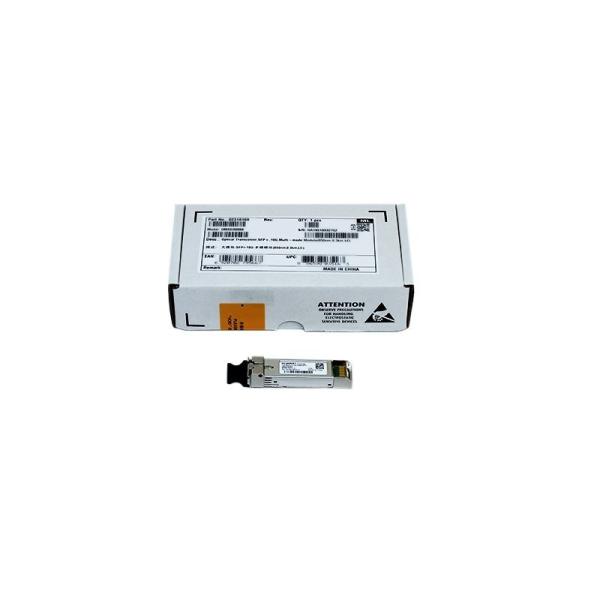

Huawei Optical Transceiver OSX010000 SFP+,10G,Single-mode Module(1310nm,10km,LC)

Huawei OSX010000 is a 10G Optical Transceiver. It’s a Single-mode Module.

Product Code	OSX010000
Transceiver form factor	SFP+
Transmission speed	10 Gbit/s
Center wavelength (nm)	1310
Standard compliance	10Gbase-LR
Connector type	LC
Applicable cable and maximum transmission distance	Single-mode fiber: 10 km
Transmit power (dBm)	-8.2 to +0.5
Maximum receiver sensitivity (dBm)	-12.6
Overload power (dBm)	0.5
Extinction ratio (dB)	3.5
Operating temperature	0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm)	110 x 70 x 37

Item	OSX010000	OMXD30000
Transceiver form factor	SFP+	SFP+
Transmission speed	10 Gbit/s	10 Gbit/s
Center wavelength (nm)	1310	1310
Standard compliance	10Gbase-LR	10GBASE-iLR
Connector type	LC	LC
Applicable cable and maximum transmission distance	Single-mode fiber: 10 km	Single-mode fiber: 1.4 km
Transmit power (dBm)	-8.2 to +0.5	-8.2 to +0.5
Maximum receiver sensitivity (dBm)	-12.6	-14.4
Overload power (dBm)	0.5	0.5
Extinction ratio (dB)	3.5	3.5
Operating temperature	0°C to 70°C (32°F to 158°F)	-40°C to +85°C (-40°F to +185°F)

Our stock support good price

Huawei Optical Transceiver OSX010000 SFP+ 10G Single Mode Module 1310nm 10km LC
